Wireless Displacement / Crack Sensor
Advanced Structural Health & Concrete Monitoring Solutions
Wireless Displacement / Crack Sensor
Specs & Details
- Long lifetime: minimum expected life without battery replacement 10 years
- Lightweight： about 147 g (5.19 oz.)
- Wireless transmitter: 120 g (4.23 oz.)
- Cable (1ft): 10 g (0.35oz.)
- Displacement sensing element: 100 g (3.5 oz.)
- Easy mounting:
– Self-adhesive, no drilling is required (e.g. steel)
– Flange-mount, drilling is required (e.g. concrete)
– Quick installation, 1-2 minutes - High accuracy: 0.01 mm or 0.4 mil resolution
- Wide working temperature: -40 to +65°C (-40 °F to +150°F)
- Long communication range: 1.0km free space
- Small size:
– Wireless transmitter: 50mm (1.96”) x 50mm (1.96”) x 34mm (1.34”)
– Crack Meter Sensor: 79/104/129/154mm (1/2/3/4”) x 22mm (0.9”) x 22mm (0.9”) - Complementary data collected: temperature, battery voltage, etc.
Description
Resensys Wireless Displacement/Crackmeter SenSpot™ provides an easy to install, scalable solution for distributed structural integrity monitoring of cracks, expansion joints, and much more. Resensys SenSpot™ technology offers a high performance method for large-scale sensing, wireless synchronization, and ultra-energy efficient wireless communication.

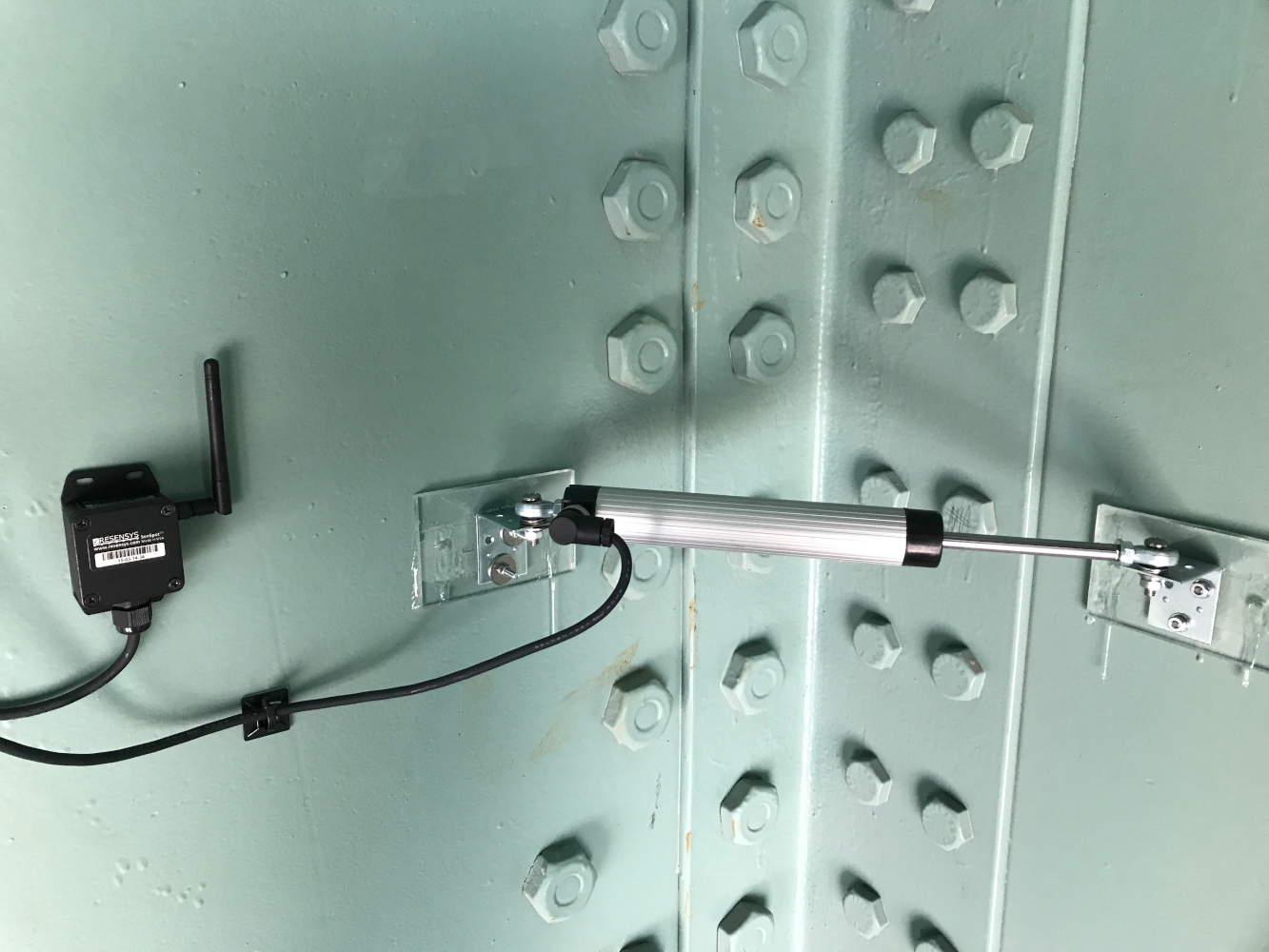

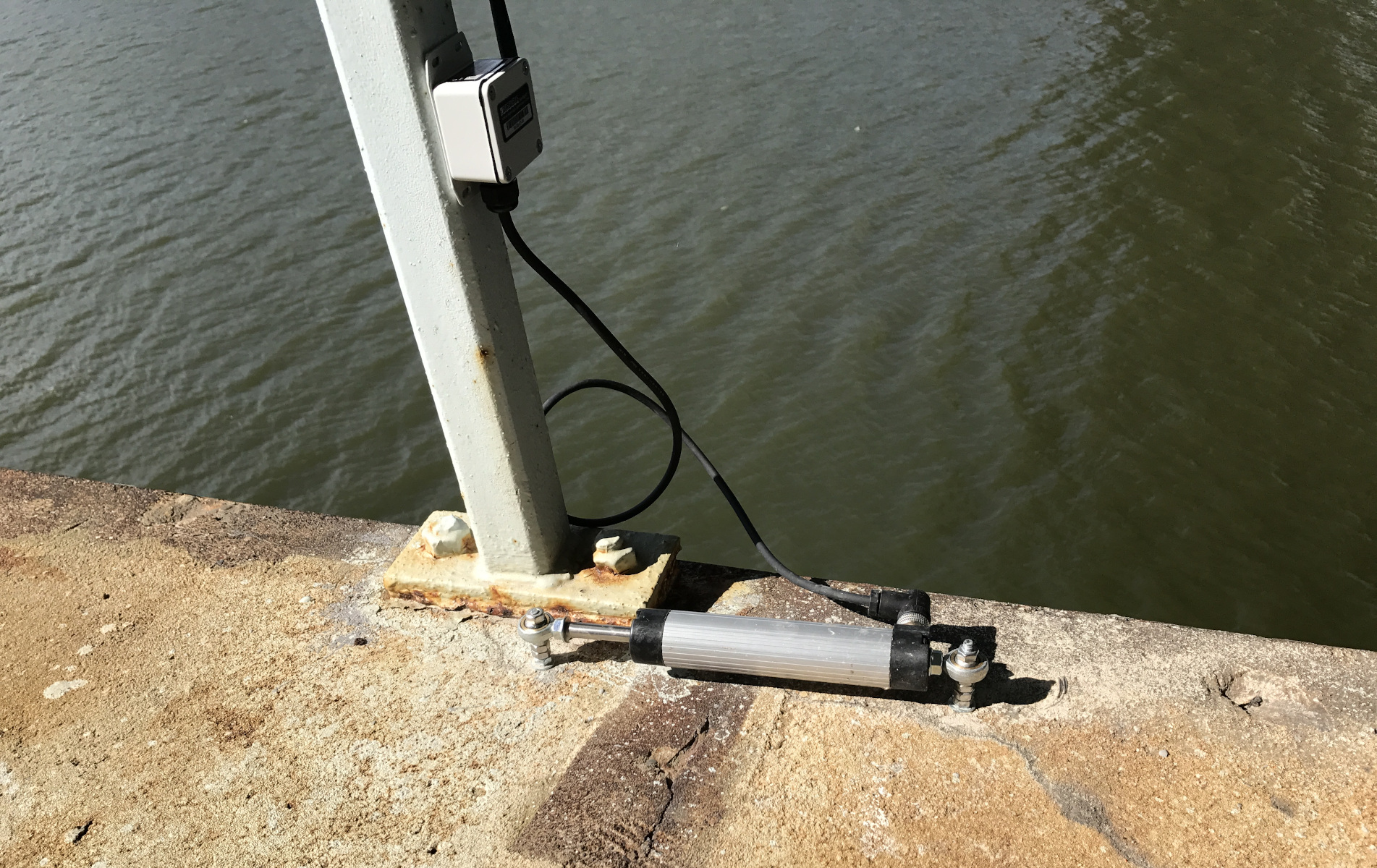

SenSpot™ is designed to operate maintenance-free for over a decade. Once installed, it does not require calibration, battery replacement, or any other maintenance throughout its entire service life. Due to its small size and light weight, the adhesive-mount wireless crack detection sensors can be easily applied to multiple critical spots on a structure with minimal installation effort. Wireless crack monitoring gauge sensors are ideal for monitoring the progression of existing cracks in a structure. The device features a sliding element that moves in response to structural displacement or crack growth.
Benefits of Wireless crack detection sensor
- Long battery life (10+ years)
- Wireless communication (IEEE 802.15.4)
- Lightweight (235g)
- High resolution displacement measurement
- Adjustable transmission interval
Featured Applications
- Monitors expansion joints, bridge bearings, and crack width on structures
- Assess activity and propagation of existing cracks
- Ensure structural integrity of bridges, buildings, dams, tunnels etc.
- Monitors movement in timber structures and bridges
- Monitors Wind Turbine tower foundation integrity
- Monitor structural integrity for Storage Tanks & Silos
- Monitors railway track alignment and infrastructure stability
- Assess wall stability and identify potential risks in Retaining wall
